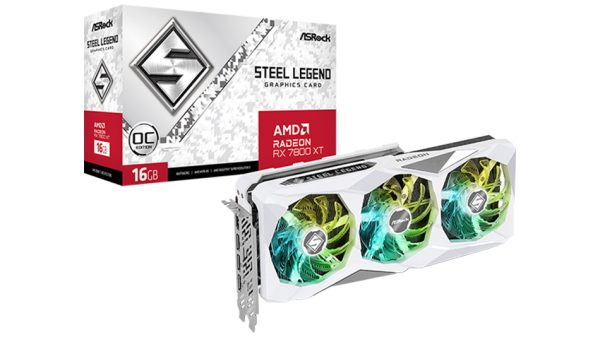

The ASRock AMD Radeon RX 7800 XT Steel Legend 16GB OC is a graphics card with a white aesthetic, ideal for towers with clear designs. The manufacturer positions this model above its Challenger OC range and below the Phantom Gaming series. This is a GPU that allows you to play at maximum 1440p or 4K UHD for users willing to adjust some graphics settings. This card is based on the maximum version of Navi 32 silicon, a next-generation GPU built on the RDNA 3 architecture. This takes advantage of the 5nm EUV foundry node. Here’s what you need to know about it.
Design and performance of the ASRock AMD Radeon RX 7800 XT Steel Legend 16GB OC

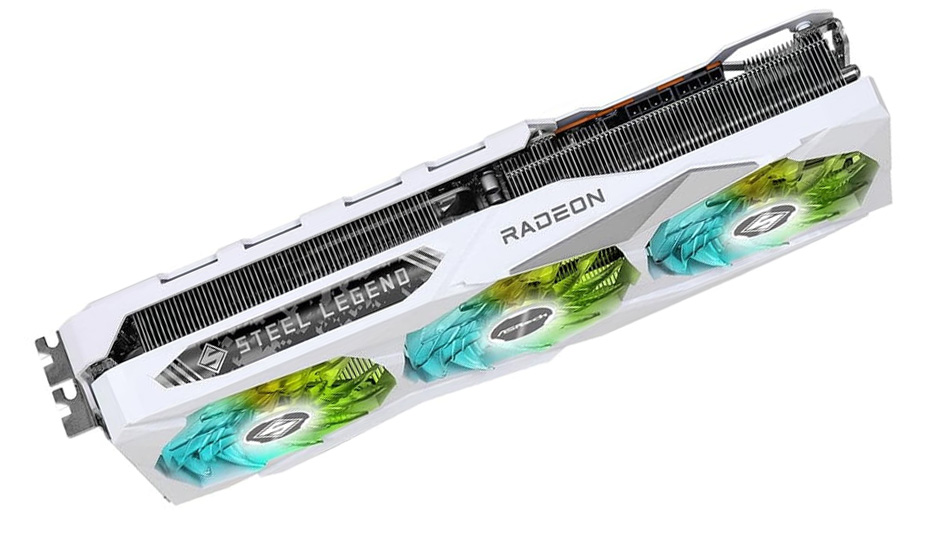

The ASRock RX 7800 XT Steel Legend sports a white design with a fairly large triple Axial Fan cooling solution . It features RGB LED lighting and includes a slight factory overclock. The GPU operates at 2213 MHz in Game Clock (compared to 2124 MHz for the reference). ASRock allows up to 2520 MHz in Boost mode (compared to 2430 MHz for the reference model). Equipped with a 256-bit memory bus and 16 GB of GDDR6 at 19.5 Gbps, it offers a bandwidth of 624 GB/s. Comparatively, this card outperforms the RTX 4070 by about 6% while being cheaper. It easily exceeds 60 FPS on most games at maximum settings. Only the most demanding titles require some adjustments.
A kid-friendly graphics card that can deliver over 100 fps
The ASRock AMD Radeon RX 7600 XT Steel Legend 16GB OC averages 102 FPS overall. This outperformed the base RX 7600 by 8.5% and rivaled the GeForce RTX 4060. It also outperformed the Intel Arc A770 by 12.1%. At 1440p, it performed 11.1% better than the RX 7600, while remaining competitive with the RTX 4060. The 16GB of VRAM is particularly useful in games like Forza Horizon 5 (+17.8%) or DOOM Eternal (+38.2%). However, the gains vary between titles and the RX 7600 XT sometimes struggles to stand out from its non-XT counterpart. Still, this card is a good choice for 1440p gaming if ray tracing is not a priority.
Cooling and Power Consumption of the ASRock AMD Radeon RX 7800 XT Steel Legend 16GB OC

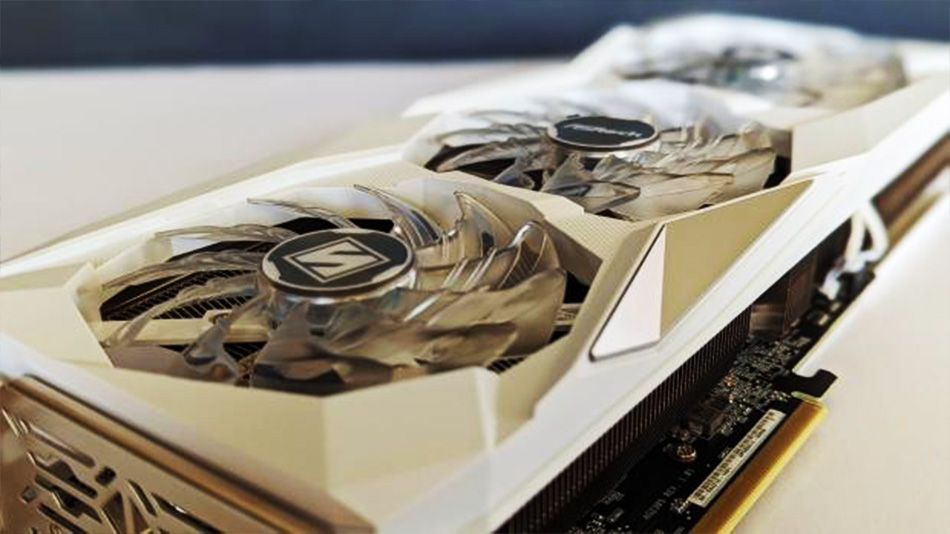

The RX 7800 XT Steel Legend’s three fans feature integrated RGB lighting and offer cooling performance that surpasses the AMD reference. Temperatures remain stable around 61°C, with an average noise level of 30 dBA. The fans shut off when the card is under light load, such as during office use or light gaming. A dedicated RGB switch allows you to quickly enable or disable the lighting without software. In terms of power consumption, the card reaches around 250W under full load, which most current power supplies can handle without any problem.
The ASRock Radeon RX 7800 XT Steel Legend is an excellent card for 1440p gaming. It offers excellent value for money, efficient cooling, and a sleek design. It’s ideal for gamers who prioritize raster performance and a reasonable price. For those focused on ray tracing, Nvidia’s alternatives remain more attractive. Nevertheless, this card is among the best of 2025 for those looking for a balance of performance and price.
| What we like |
|---|
| – Excellent performance/price ratio – Support for the latest technologies (DirectX 12 Ultimate, HDMI 2.1, etc.) – 16 GB of GDDR6 on a 256-bit bus |
| What we like less |
|---|
| – RGB software sometimes problematic – Large size (approx. 304 mm) |
